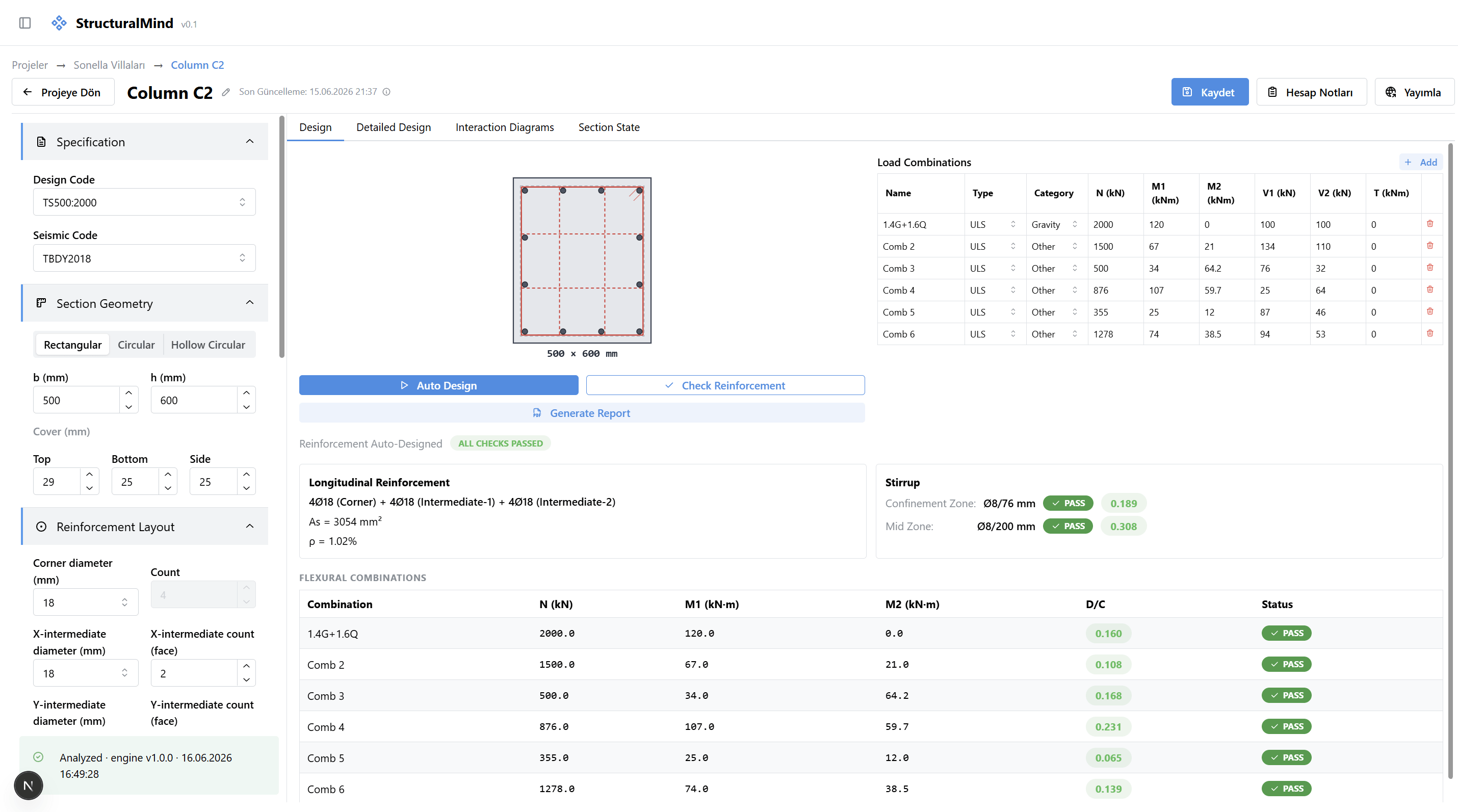

Reinforced-concrete column design
Design reinforced-concrete columns right in your browser. Enter your load combinations, auto-design the reinforcement or check your own layout, and review detailed design results with formulas and code references. The design is powered by a robust fiber section-analysis engine.

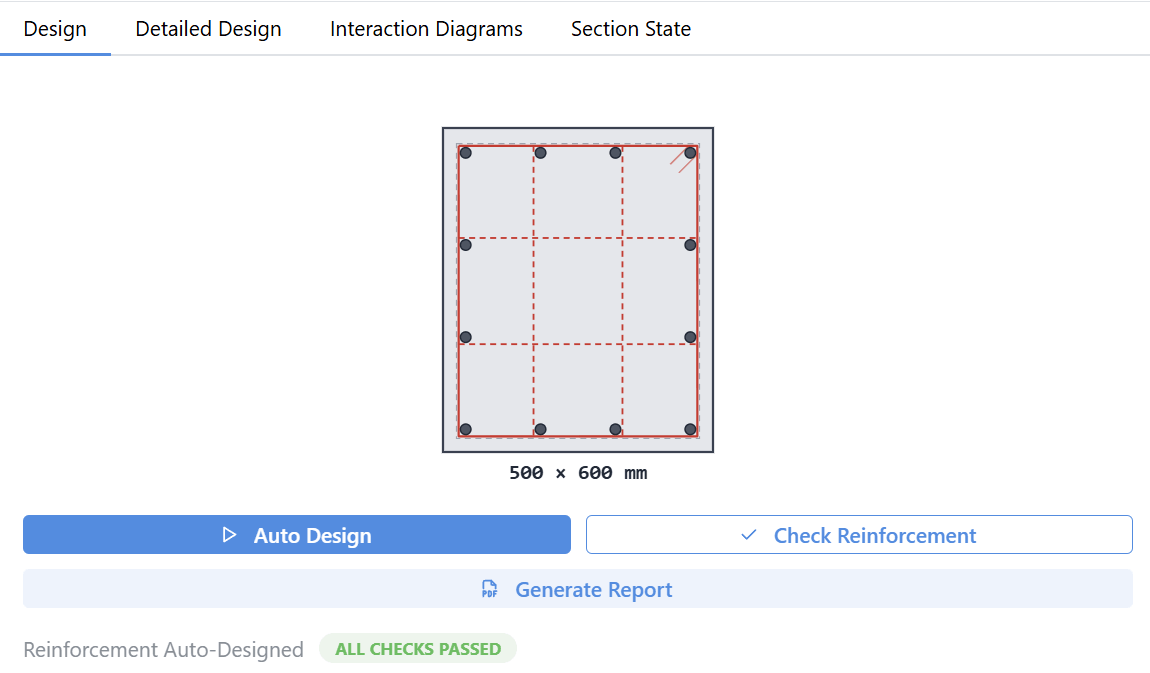

Automatic reinforcement design
Longitudinal bar count, bar diameter and stirrups are selected automatically for the combinations you enter, and section confinement requirements are applied automatically.

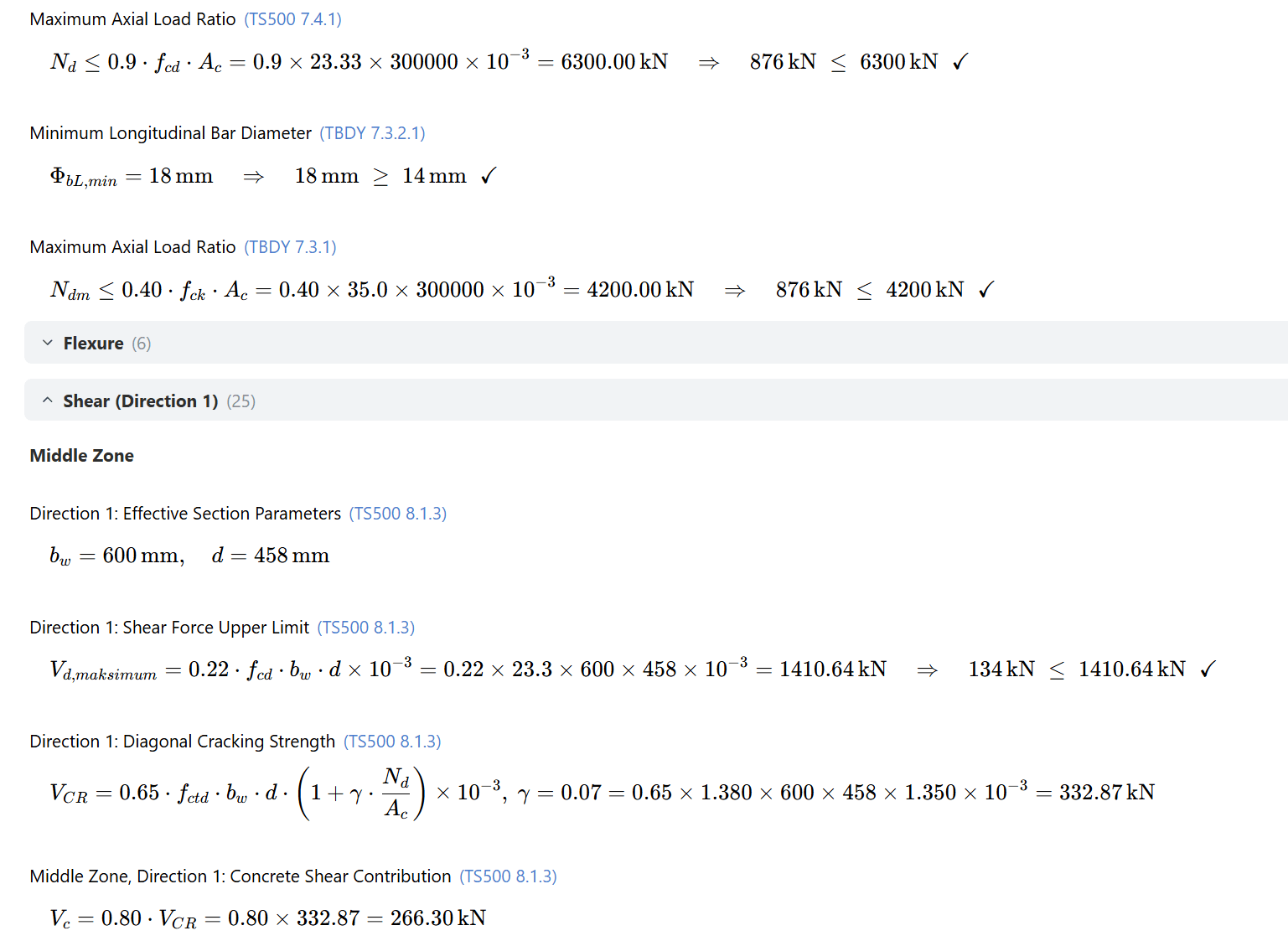

Check existing reinforcement
Your existing section and reinforcement layout is checked against the combinations you enter, reporting whether the design and confinement are adequate.

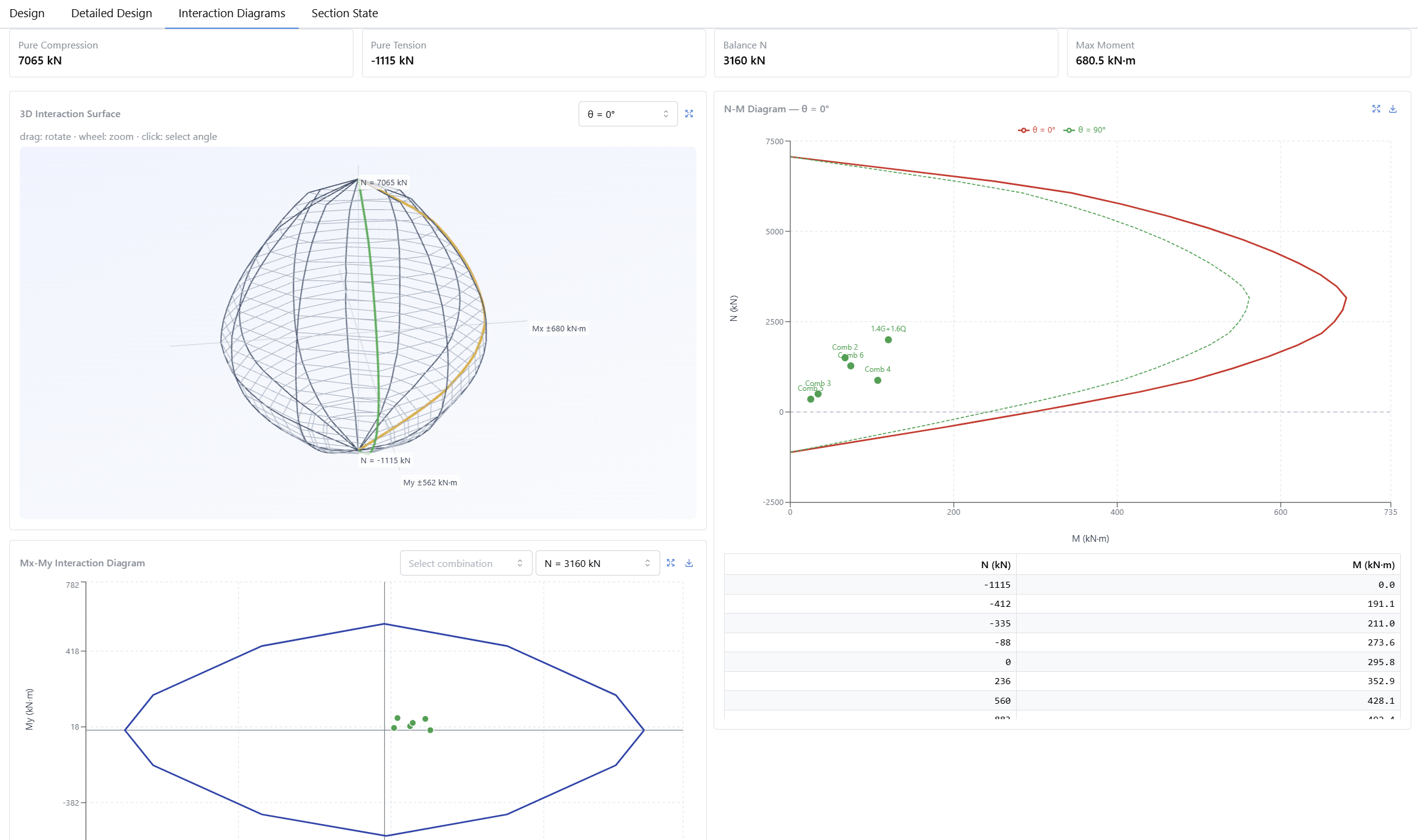

3D P-M-M interaction
The section's 3D interaction surface is generated and can be queried interactively. Every combination is checked against it with a demand/capacity ratio.

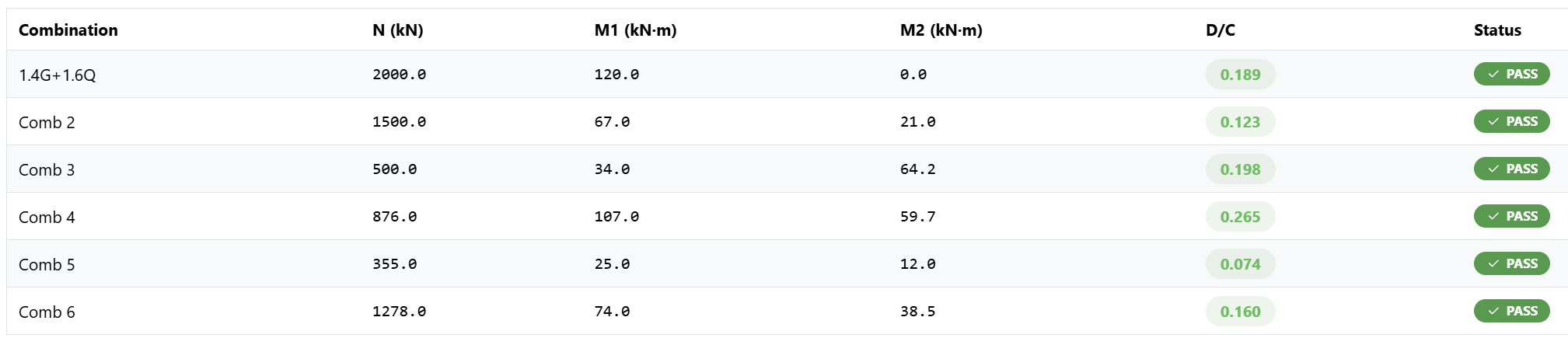

As many load combinations as you need
Define load combinations or import them. Longitudinal bars and stirrups are determined for each combination and the most critical one governs; capacity utilization ratios are shown.
Shear, torsion and confinement
Shear and torsion are designed in both directions. Bars not supported by a stirrup corner are checked. Confinement and span zones are handled separately.

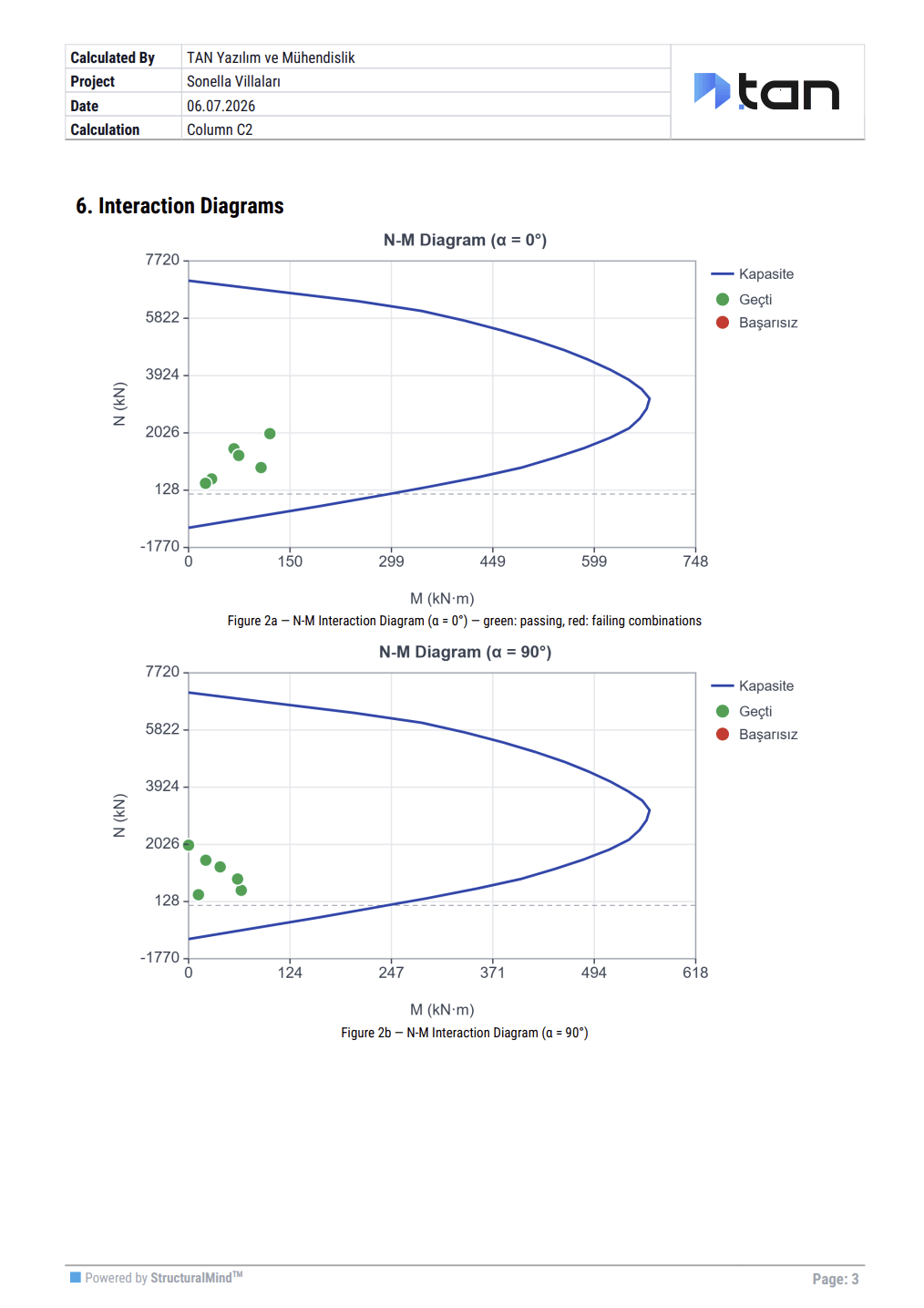

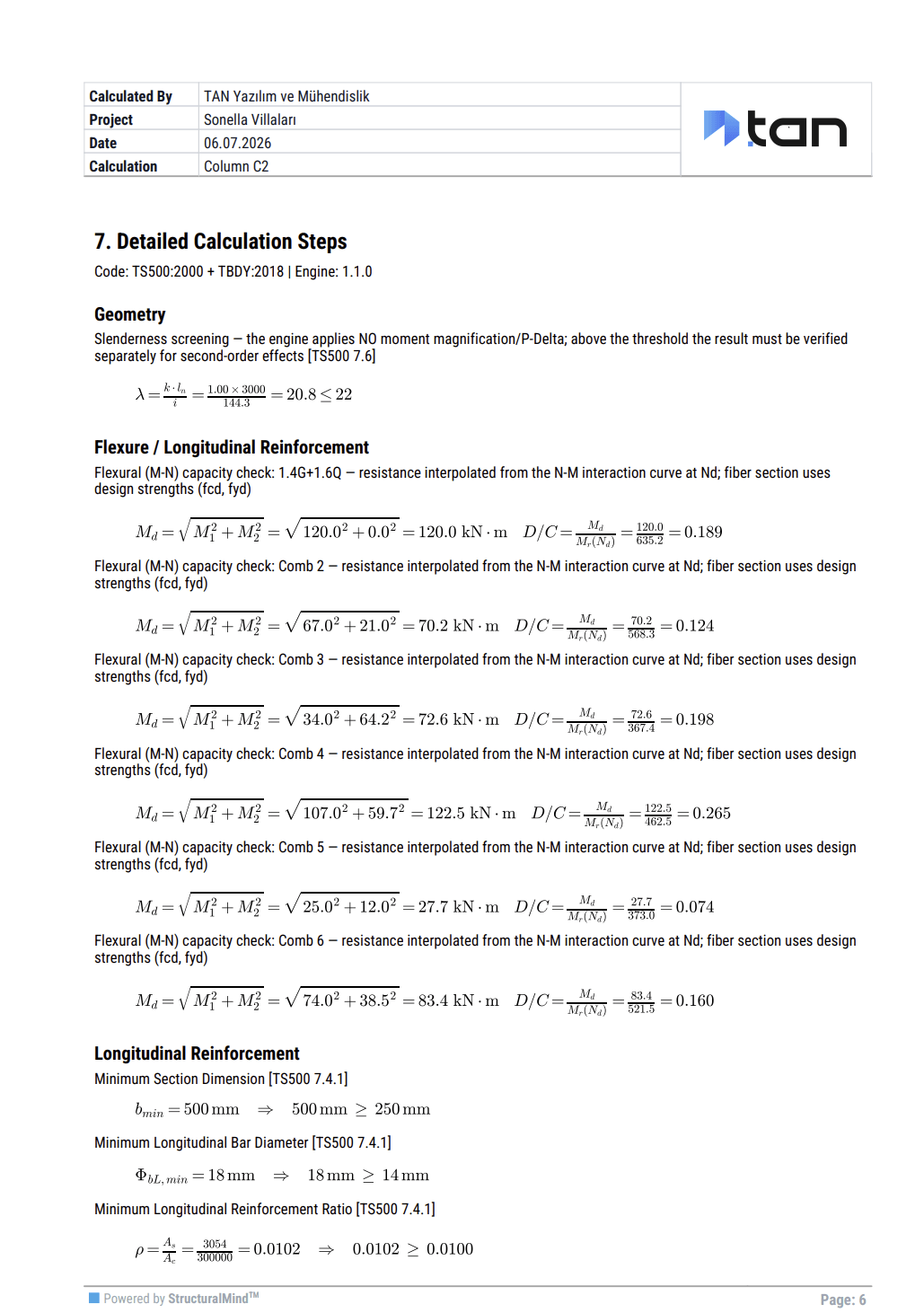

Formula- and code-referenced reports
Design checks are shown with explicit formulas and code references — on the UI, in the PDF report and in the calculation's digital publication — making verification and review easy.
Questions
- Which codes are supported?
- Column design currently supports TS500:2000 and the TBDY 2018 seismic code. Other international codes will be added.
- Can it design the reinforcement for me?
- Yes. Auto Design selects the longitudinal bar count and diameter and the stirrup diameter and spacing so that every check passes. You can also enter an existing layout and check it.
- Is biaxial bending considered?
- Yes. Each load combination is analyzed with biaxial fiber section analysis and checked against the 3D P-M-M interaction surface using demand/capacity ratios.
- Is this calculation free?
- Column Design is a premium calculation included in the Engineer plan. You can try it free.
Start calculating in minutes.
Sign up, pick a calculation, and produce your first auditable report.
